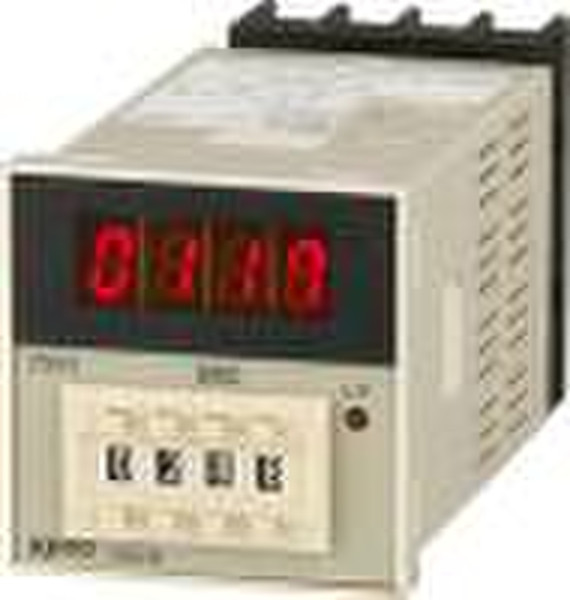

Solid-State Digital Timer(Time Relay) [H5CN]

H5CN digital time relay 1)Dimension: 48*48*89mm 2Timingrange: 0.1s 99.9s, 0.1s 99.9s,1s 999s, 0.1M 99.9M, 1M 999M, 0.1H 99.9H, 1H 999H,10H 9990H, 3)Supply voltage: 24 to 24VAC, 50/60HZ,12 to 240VDC 4)Contact form: H3CA-8:Timed 2SPDT; H3CA-8H:Timed SPDT, Inst SPDT. 5)Operation form: H3CA-8:On-delay; H3CA-8H:On-delay with Inst. contact 6)Accuracy: Repeat error: ±0.3%,±0.5%sec; Setting error: ±0.5%,±0.5%sec, 7)Opening Dimensions: 45*45mm 8)Timer
