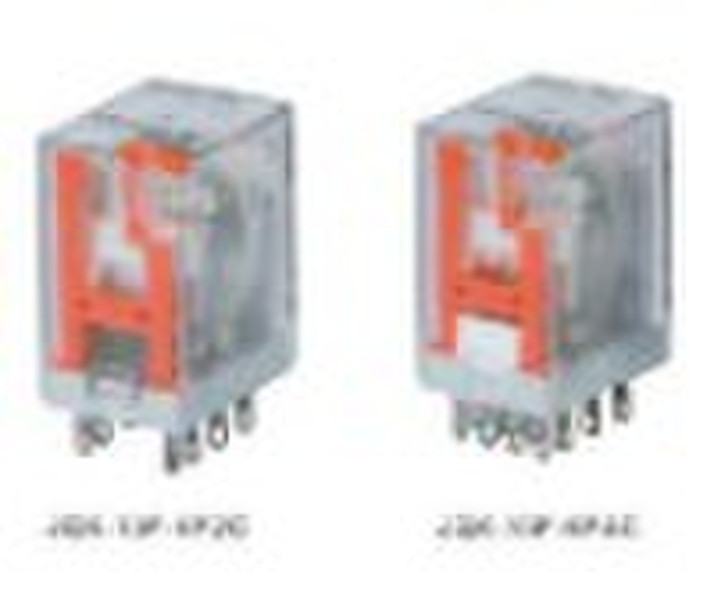

Power relay JQX-13F-KF
linda lin
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | sloke |
| Model Number | JQX-13F-KF |
| Theory | Voltage Relay |
| Usage | General Purpose |
| Size | Miniature |
| Protect Feature | Other |
| Contact Load | Low Power |
Contact Contact form2C3C4CRated loadResistive10A/250VAC 30VDC 5A/250VAC 30VDC Motor1/3HP,120VAC1/2HP,240VAC 1/3HP,120VAC1/6HP,240VACOperating power(Resistive)2500VA 300W12500VA 150WContact resistance(Initial)≤50mΩMaterialAg alloyElectrical life1S,1S≥105 cycles1800 Ops/h Mechanical life300/1≥107 cycles18000 Ops/h Operate voltage(at 25)DC:≤75%Rated voltage,AC:80%Rated voltage Release voltage(at 25)DC:≥10%Rated voltage,AC:30%Rated voltage Max.Allowed voltage(at 25)110%Rated voltage Insulation resistance≥500MΩ(500VDC)Coil power consumptionDCW0.9ACVA1.2Operate time(Rated voltage)≤20msRelease time(Rated voltage)≤20msDielectric Strength Between contacts 1000VAC/1minLeakage current 1 mABetween contacts(different pole)1000VAC/1minLeakage current 1 mABetween contact and coil1800VAC/1minLeakage current 1 mAAmbient temperature-55+70Humidity35%85%RHAtmospheric Pressure86106KPaShock resistance10GHalf a wave of pulses of sine11msVibrtion resistance 1055Hz Dual amplitude1.0mmInstall modelPlug-in terminals/PCB terminal Weight35gMatched relay socketSYFO8ASYFO8A-E SYFO8 SYF08-0 SKB08-ESKC08-ETP58XPYF08.5A SYF11AYF11A-E SYF11F11-0SKC11-ETP511XSYF14ASYF14A-E SYF14 SYF14-0 SKB14-ESKC14-EPYF14.5A TP514XRated voltage V.DC 6912 243648100110220240Coil resistanceΩ(±10%)40901606501500260011000110004200064000Rated voltage V.DC612243648110120220240380Coil resistanceΩ(±10%)11.54016037060039004430130001879042000
Delivery terms and packaging
Port: Ningbo or Shanghai
